Grote Select™ Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54172Female Pin

54172Female Pin

  • 54172 360 thumbnail
  • 54172 thumbnail

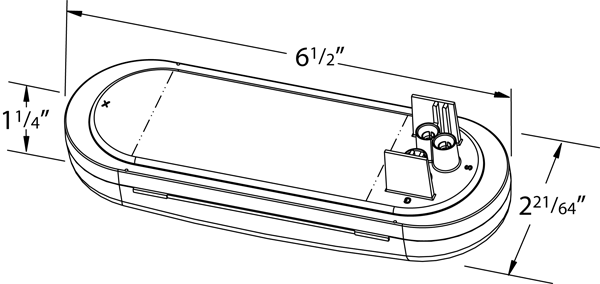

  • Grote product drawing - grote select led oval female pin thumbnail
  • 54172 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .04A-.48A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I6, P, S, T, P2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Grote Select™
  • Shape: Oval
  • Warranty: 2 Years
Features & benefits
  • Fits current mounting flanges and grommets
  • Female pin connection accepts all popular connectors
  • Specially formulated encapsulant potting protects against moisture, vibration, and corrosion
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43362
43362
 Bracket 43952
43952
 Bracket 43220
43220
 Bracket 43223
43223
 Bracket 43222
43222
 Bracket 43100
43100
 Bracket 43723
43723
 Bracket 42152
42152
 Bracket 42153
42153
 Bracket Stainless Steel Security Ring
42103
 Grommet 92420
92420
 Grommet 92720
92720
 Pigtail 67090
67090
 Pigtail STT 3-Wire 66825
66825
 Pigtail STT 3-Wire 67000
67000
 Pigtail STT 3-Wire 66812
66812
 Pigtail STT 3-Wire 66844
66844
 Pigtail STT 3-Wire 66843
66843
 Pigtail STT 3-Wire 66811
66811
